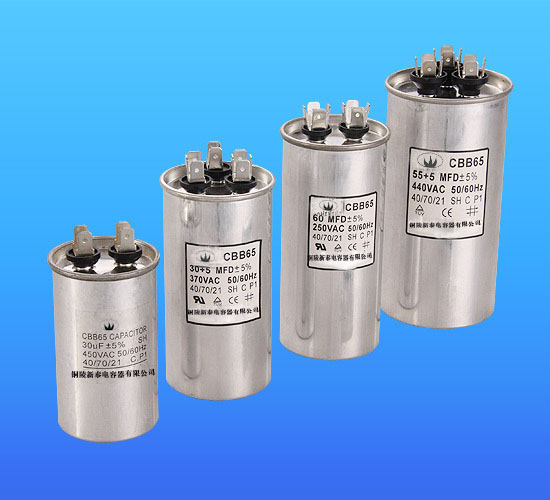

Explosion-proof capacitor CBB65
1. Shell: round or oval-shaped aluminum
2. Characteristics and Uses: This product is no sense of metallized polypropylene film type winding structure, high reliability, built-proof device, by vacuum impregnation with aluminum package, then use the safe, reliable, good stability, resistance the impact of current, overload and strong, low loss, insulation resistance, rated long life, excellent self-healing properties, the internal temperature of small, capacitor leakage and liquid materials, nontoxic, environmentally and so on. Used refrigerators, air conditioners, motors, pumps, household appliances, electronic products.
3. Technical parameters:
Capacity range: Round 5μF ~ 100μF, oval 5μF ~ 50μF
Capacity Deviation: ± 5%, or by customer requirements.
Rated voltage: 125V ~ 500VAC, 50/60Hz
Operating temperature range: -25 ℃ ~ +70 ℃
Dissipation factor: ≤ 0.002 (20 ℃ .50/60Hz)
Resistance between terminal voltage: AC ≥ 1.75Un 5S no breakdown
Resistance between terminal voltage and the shell: AC ≥ 2000V 10S no breakdown
Insulation resistance: between terminations ≥ 3000MΩ.μF (20 ℃ .100 VAC); shell terminal and the Department between Rj ≥ 1000MΩ
Executive Standard: GB3667.1-2005, IEC60252-1: 2001
|
